LAR-1428
Features
NSB Linear guide clamp combines linear guide block with a connector. With this clamp, you could fix your blocks anywhere on the rail. Our linear guide clamp are suitable for linear guides of all brands.
LAR Linear Guide clamp (Medium/Heavy Load Type) range starts from 14mm to 28mm.
Description

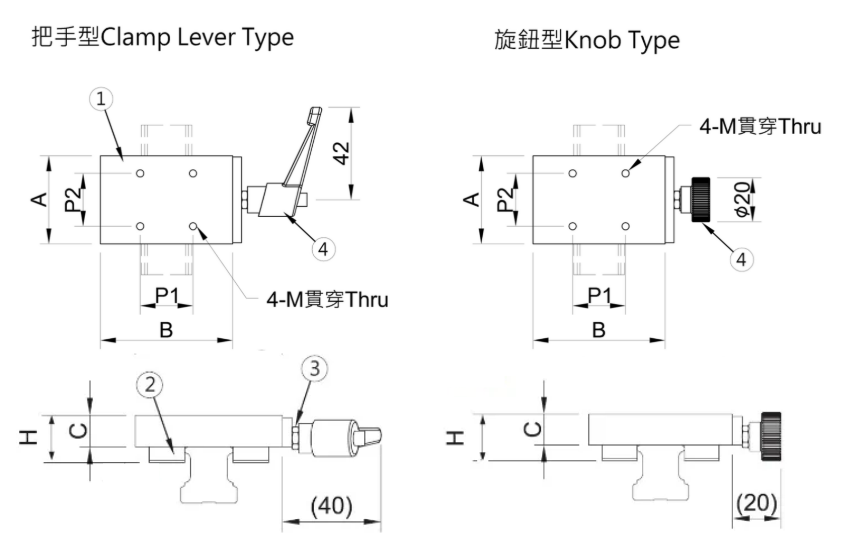

Specification
單位／Unit：ｍｍ
| Guide dia. | A | B | C | P1 | P2 | H | h | M |
| 15 | 40 | 60 | 13 | 25 | 25 | 28 | 8.5 | M5 |
| 20 | 40 | 60 | 13 | 25 | 25 | 33 | 13.5 | M5 |
| 25 | 40 | 60 | 13 | 25 | 25 | 36 | 16.5 | M5 |
※Made for standard guide with width 15,20, 25mm.
Part List
| NO. | Part Name | Qty | Material | Surface Treatment |
| 1 | Housing | 1 | S45C | Electroless Nickle |
| 2 | Block | 2 | S45C | Electroless Nickle |
| 3 | Hand Thread | 1 | S45C | Black Oxide |
| 4 | Lever / Knob | 1 | K.T. | Black |
| 型號 | 2D Drawings Download | 3D Drawings Download | Catalog Download |
| LAR1428 | LAR1428 | Knob Type LAR1428-K | LAR1428型錄下載 |
| Clamp Lever Type LAR1428-C |
